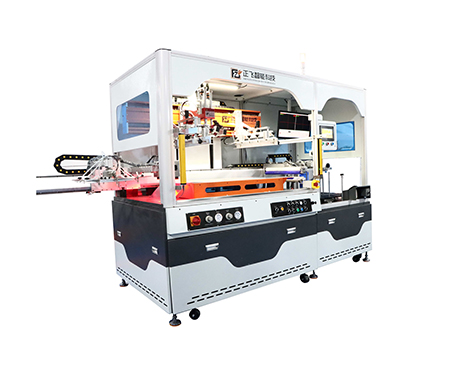

Automatic screen printing machines are widely used in the field of efficient printing.As a continuous processing method,the multi-station rotary structure can increase the output per unit time and is suitable for multi-sided printing,multi-process parallel operation,and production line rhythm control scenarios.

The multi-station rotary structure feeds the workpieces into different printing positions in sequence through mechanical turntables or servo-driven arm devices.Each workstation can be equipped with different functional modules such as screen printing,pretreatment,UV curing,and detection to achieve process integration and rhythm coordination.The printing cycle can be independently set within a single device,enhancing the flexible processing capacity.

Automatic screen printing machines that are compatible with rotary structures generally adopt multi-axis motion systems to achieve actions such as positioning,loading and unloading,and rotary drive.The servo drive system,in combination with positioning sensors and braking devices,realizes the connection between workstations and error compensation.Some models can support 4-station,6-station or even 8-station structures,making them suitable for high-rhythm and multi-sided printing products.

In terms of structural configuration,the printing platform supports the clamping of various structural components such as flat surfaces,curved surfaces,and irregular shapes.The fixture module can be quickly replaced or adjusted to enable rapid switching between categories.The synchronous control during the rotation process relies on the PLC or motion controller to coordinate multiple parameters to ensure operational stability and printing synchronization.

Typical applications include multi-sided and multi-layer printing requirements for products such as glass covers,plastic panels,electronic tags,and transfer films.The multi-station rotary structure is also suitable for pre-coating,alignment printing,pattern preparation before bonding and other processes.

The multi-station structure puts forward higher requirements for equipment stability,servo response speed and fixture rigidity.In the layout design of the equipment,factors such as the occupied space,energy consumption balance,maintenance access and the convenience of personnel operation need to be taken into consideration.

Based on standardized configuration,some automatic screen printing machines support the connection of expansion modules to achieve process expansion and flexible extension of production lines.
