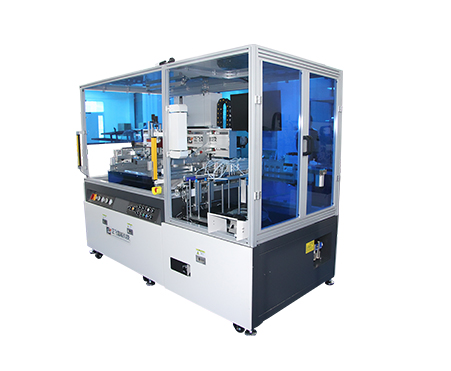

CCD automatic screen printing machines are widely used in the modern printing industry, and their printing efficiency is directly related to the production progress and cost. However, in the actual production process, there are multiple factors that can affect its printing efficiency.

　　The performance and status of the equipment itself are the key factors. Firstly, if the mechanical transmission components of the CCD automatic screen printing machine, such as guide rails and lead screws, are worn or insufficiently lubricated, it will lead to poor movement, limiting the movement speed of the printing head, increasing pauses and stuttering during the printing process, and thereby reducing the overall printing efficiency. Secondly, the control system of the screen printing machine has a significant impact on the printing efficiency. If the control system responds slowly and fails to process the information fed back by the CCD vision system in a timely manner, it will consume a lot of time when calibrating the printing position and adjusting the parameters, thus delaying the printing process. Furthermore, the quality and service life of the screen plate should not be ignored either. Screen plates that have been in use for too long or are poorly made are prone to problems such as mesh blockage and reduced tension, which leads to poor ink permeability. Frequent shutdowns for cleaning or replacement of the screen plates are required, thus disrupting the continuity of printing.

　　The setting of printing process parameters will also have an impact on efficiency. When the printing pressure is not appropriate, if the pressure is too high, it will increase the friction between the printing head and the substrate, slow down the movement speed of the printing head, and at the same time may also damage the screen plate and the substrate. If the pressure is too low, it will lead to insufficient ink transfer, resulting in incomplete printed patterns and the need for repeated printing, which reduces efficiency. The setting of the printing speed is equally important. An overly fast printing speed may prevent the ink from being evenly distributed, resulting in printing quality issues and subsequently requiring rework. However, if the printing speed is too slow, it will directly prolong the printing time of individual products. In addition, the viscosity of the ink also affects the printing efficiency. If the viscosity is too high, the ink will flow difficult and it will be hard to pass through the screen quickly. If the viscosity is too low, the ink is prone to diffusion, resulting in blurred printed patterns, all of which require time for adjustment.

　　The proficiency of the operators and whether the operation is standardized or not will also affect the printing efficiency. Experienced and skilled personnel can quickly and accurately set equipment parameters, handle unexpected problems, and reduce the time for equipment debugging and fault handling. On the contrary, operators are not familiar with the equipment operation process. When changing the type of substrate or adjusting the printing parameters, they may spend a lot of time figuring things out. Even improper operation may cause equipment failure and interrupt production. Moreover, non-standard operations may also lead to unstable printing quality, defective products, and increase rework costs and time costs.

　　External environmental factors should not be ignored either. The temperature and humidity of the working environment have an impact on the drying speed and performance of the ink. When the temperature is too low and the humidity is too high, the ink dries slowly. To ensure the printing quality, the drying time needs to be extended, which reduces the printing efficiency. Conversely, if the temperature is too high or the humidity is too low, the ink will dry too quickly, which can easily clog the mesh of the screen and also affect the printing process. In addition, excessive dust and other impurities in the workshop may contaminate the screen plates and substrates, causing defects in the printed patterns and increasing the cleaning and processing time.
